The Arduino LED blink project on Tinkercad is one of the simplest and most effective ways for beginners to learn the basics of microcontroller programming. Using Tinkercad’s online simulator, you can build and test the entire circuit without needing any physical components. This makes it ideal for students, hobbyists, or anyone exploring electronics for the first time.
The project typically uses an Arduino board, a single LED, and a resistor, allowing you to focus on understanding how digital outputs work. By writing a short Arduino sketch, you control how the LED turns on and off, introducing essential concepts like pin modes, delays, and loop functions. As you experiment, you gain hands-on experience with timing, code structure, and circuit connections. The visual nature of the Tinkercad simulator helps you identify errors quickly, test new ideas, and understand how the code interacts with hardware in real time. This project builds a strong foundation for more advanced Arduino experiments, making it a perfect starting point for anyone beginning their journey into electronics and programming.
Steps to Create your First LED Blink Project on TinkerCAD Using an Arduino Uno Board
Step 1

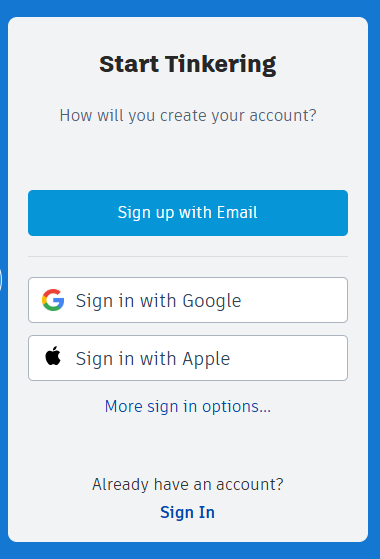

First, Click Here to Visit TinkerCAD Circuits Website. You can create an account using your Gmail address.
Step 2

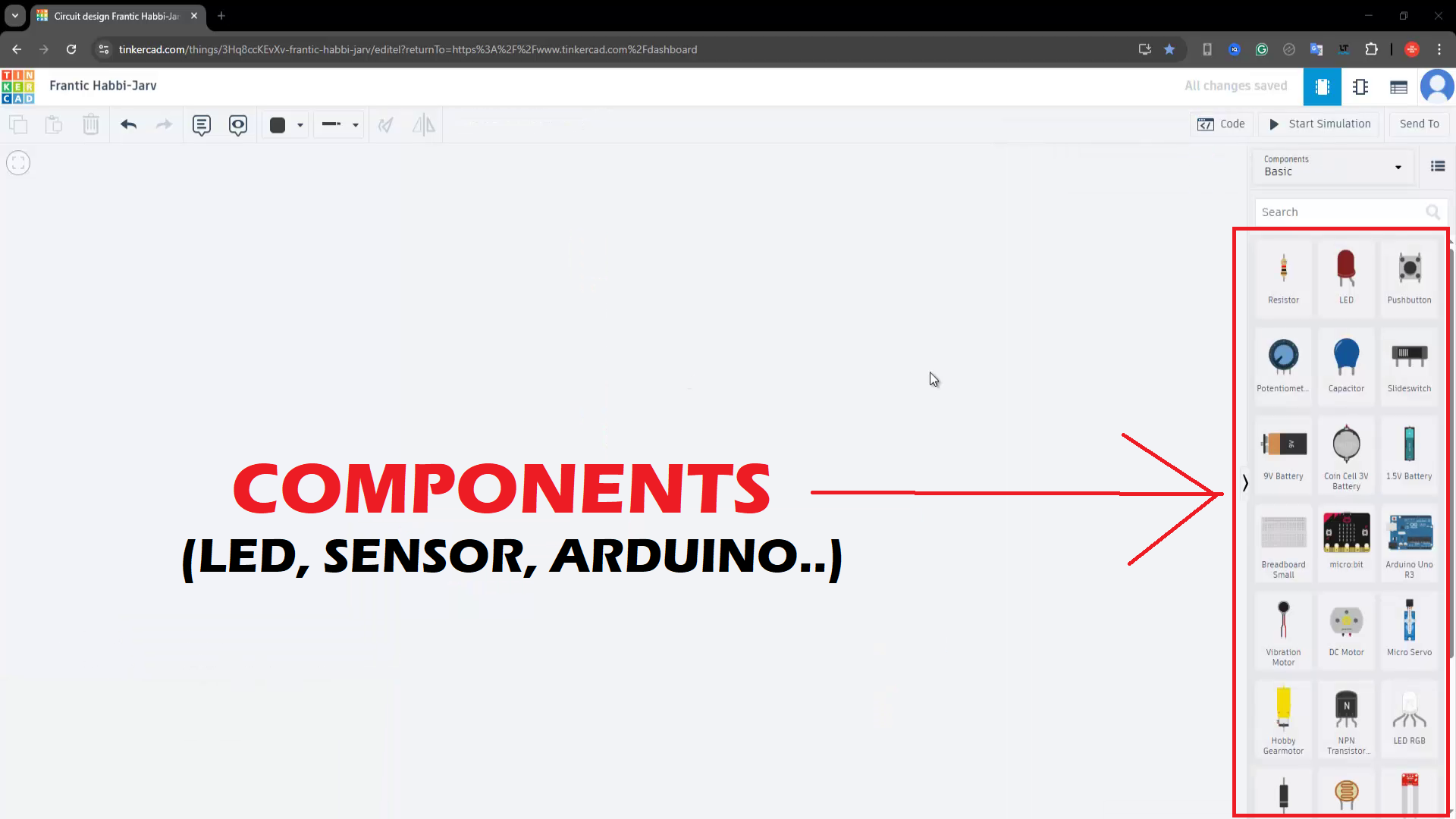

Once you Opened your account, you will get a user interface like this, see the image below,

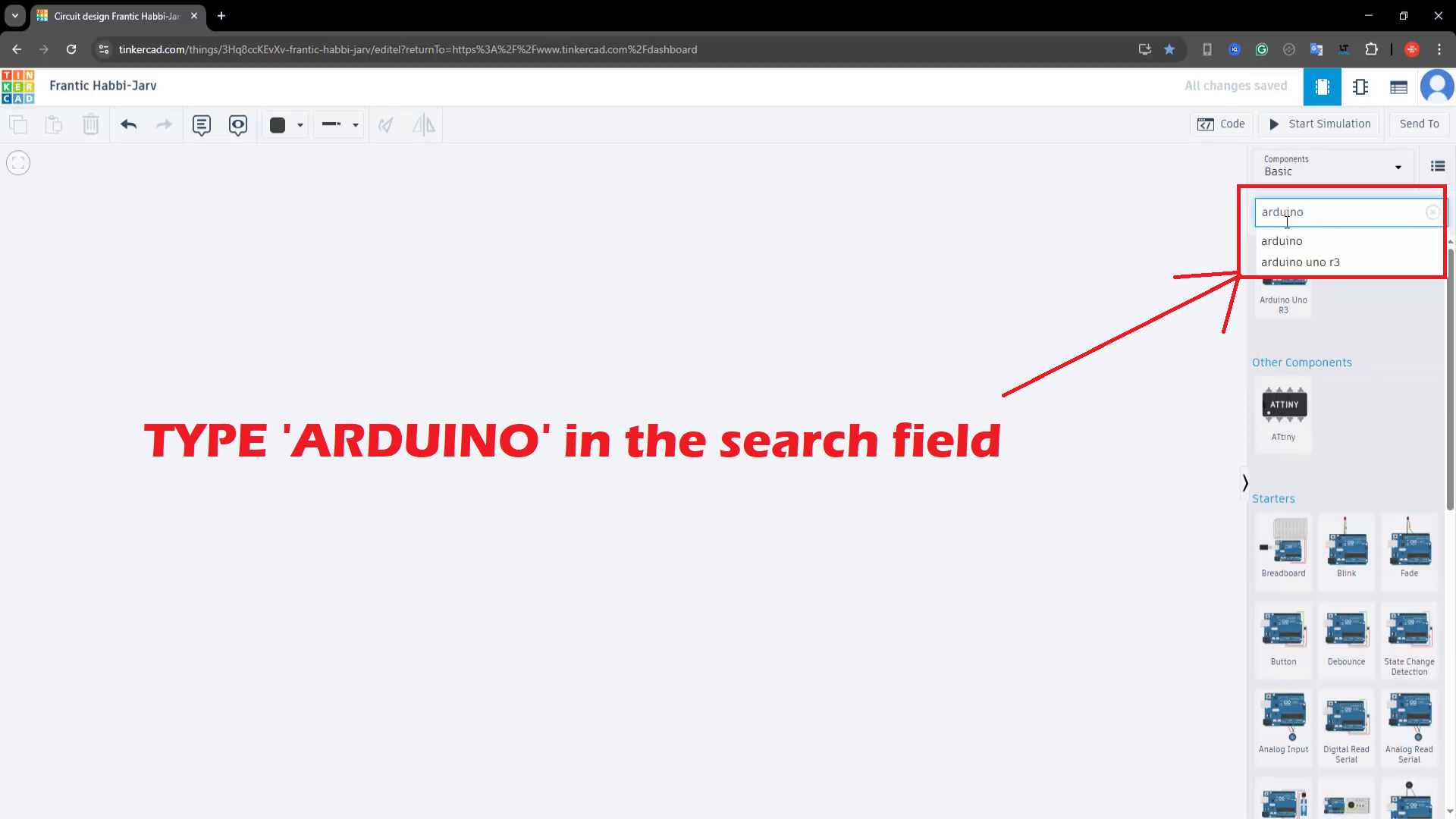

In the Search Field, Type ‘Arduino‘.

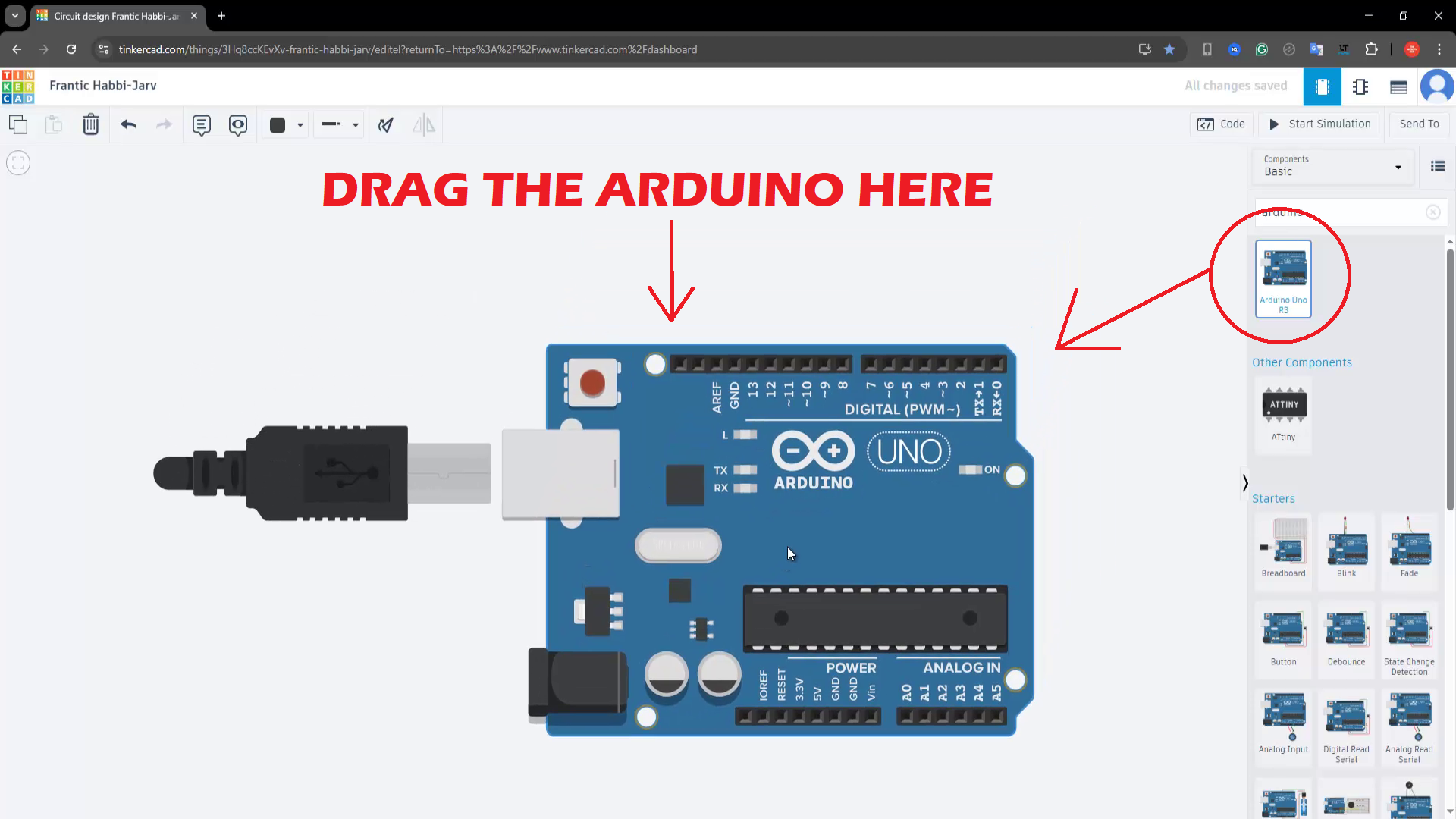

Drag the Arduino board in the left section of Tinkercad.
Step 3

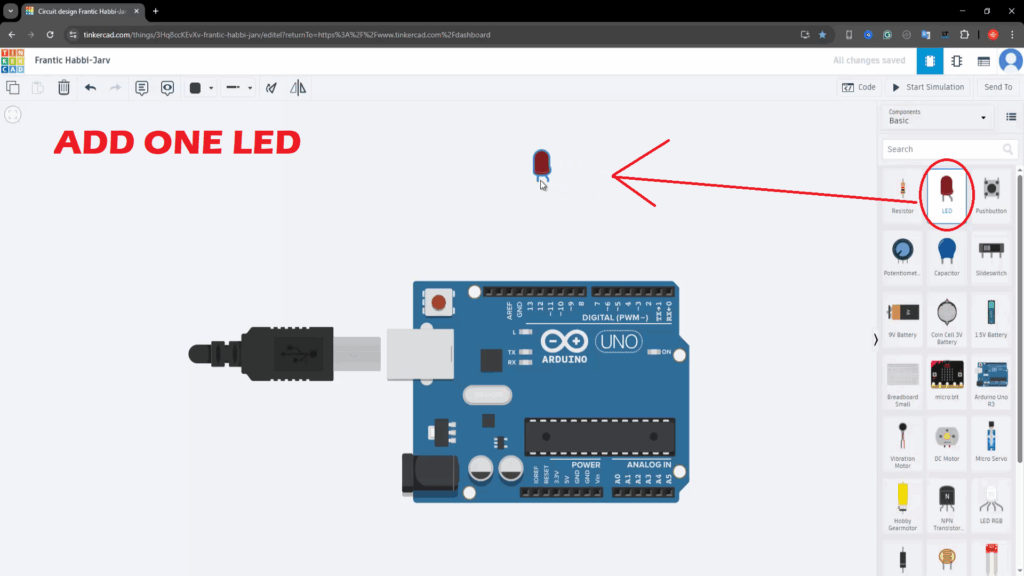

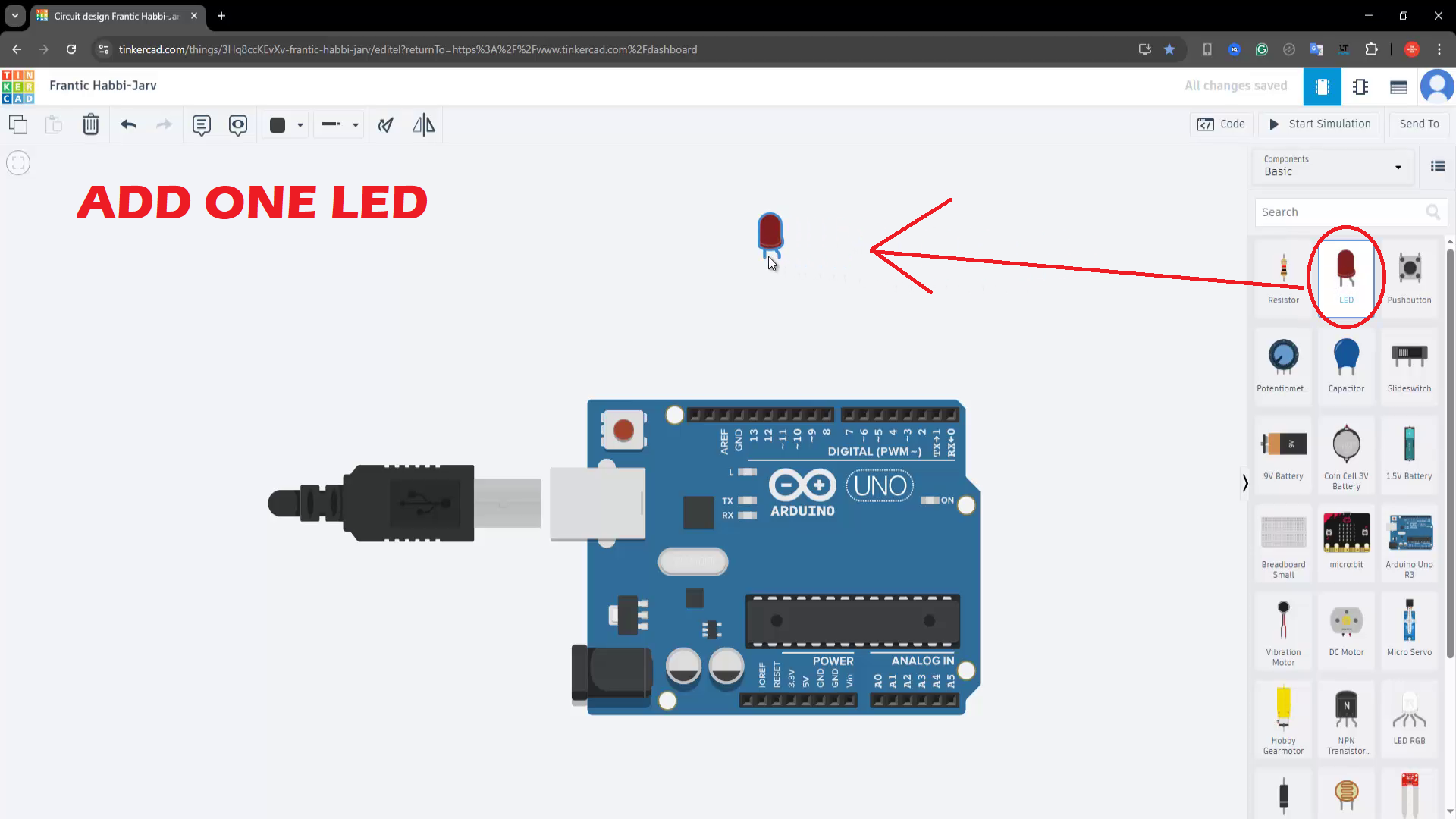

Add a LED.

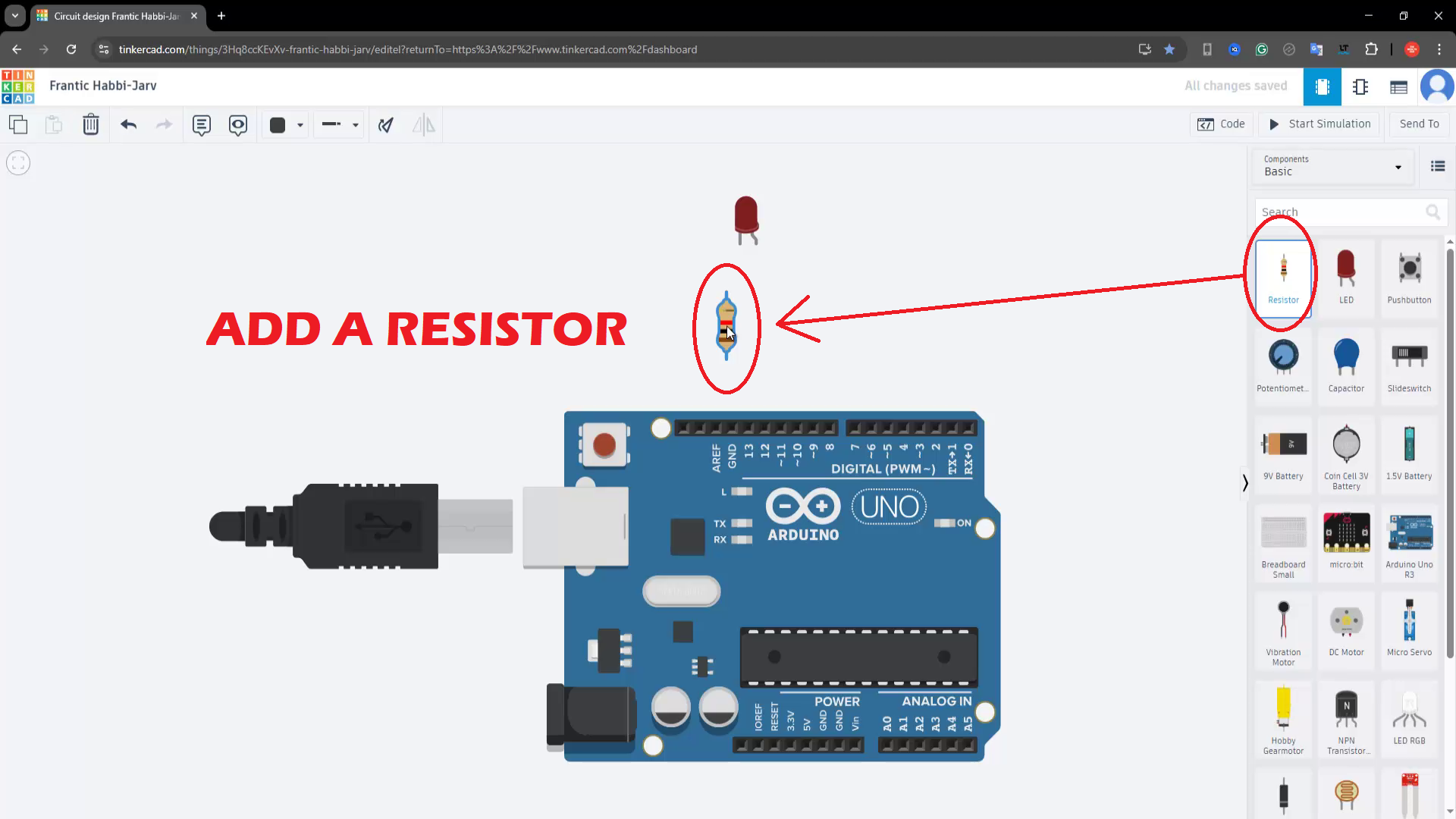

Next, Add a Resistor.
Step 4

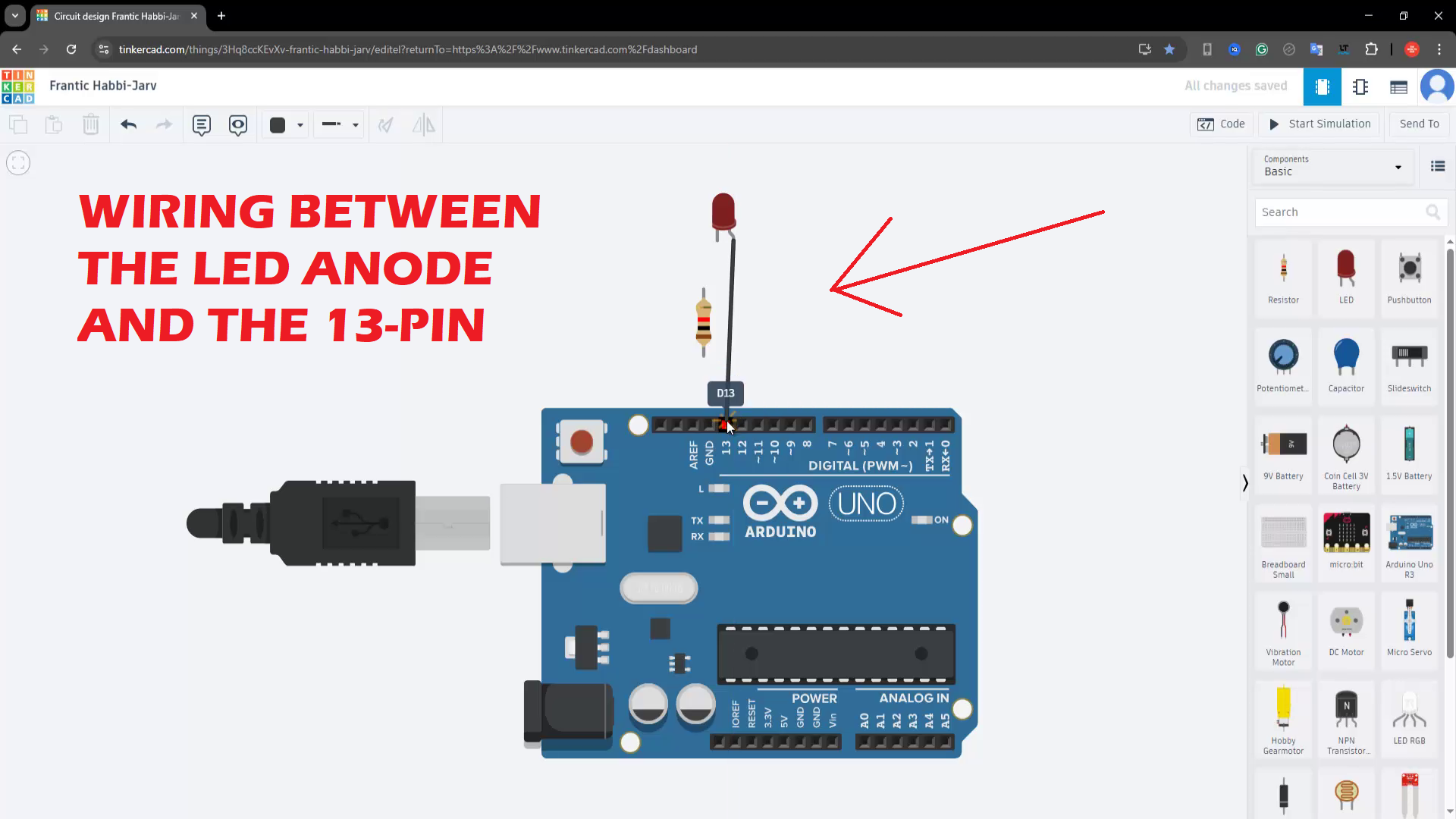

Now do left-click on the LED Anode, then click on the 13-Pin of the Arduino board to create the wire.

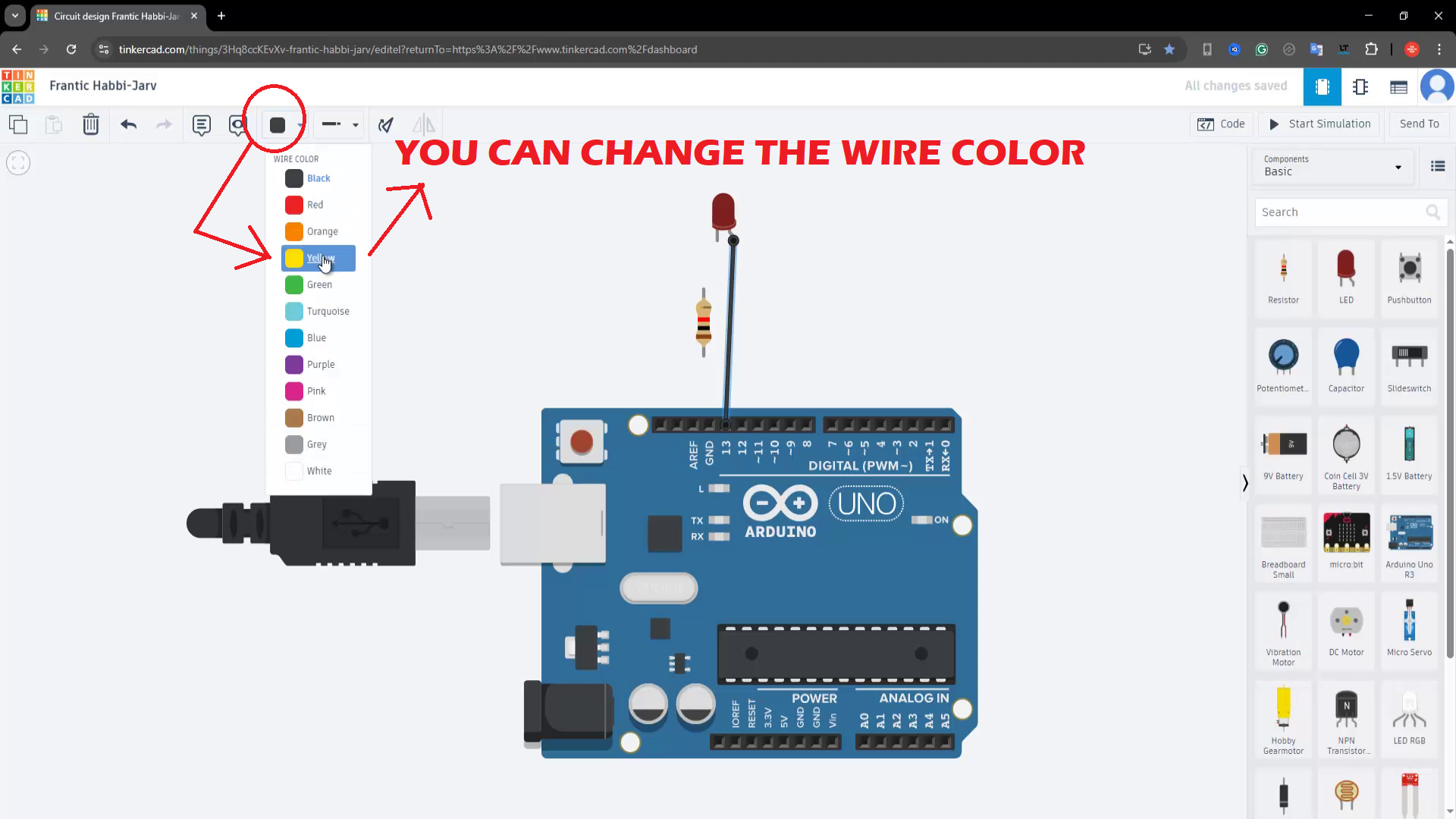

You Can change the color of the Wire.

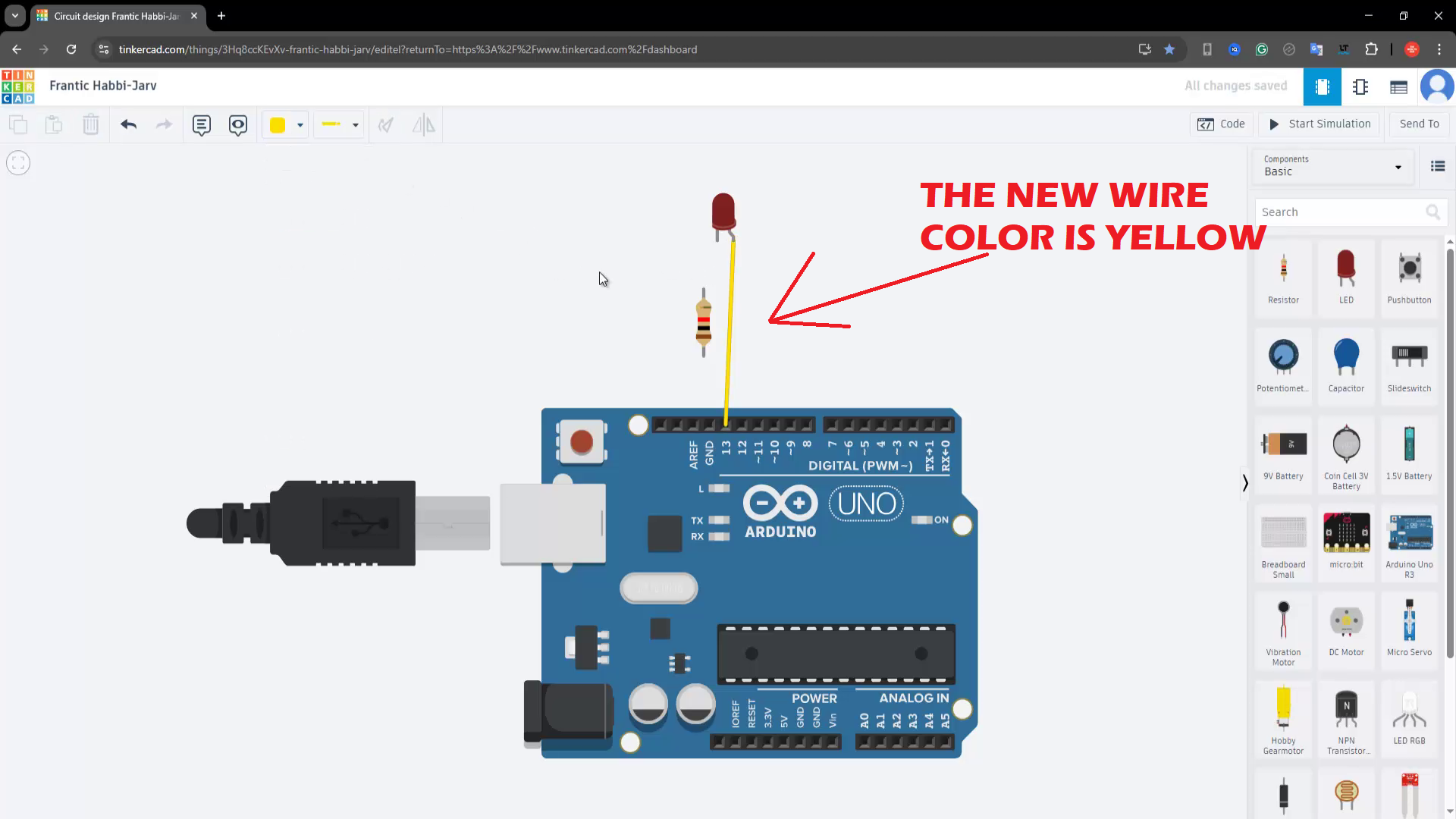

In this Case, we changed the wire color, from black to yellow.
Step 5

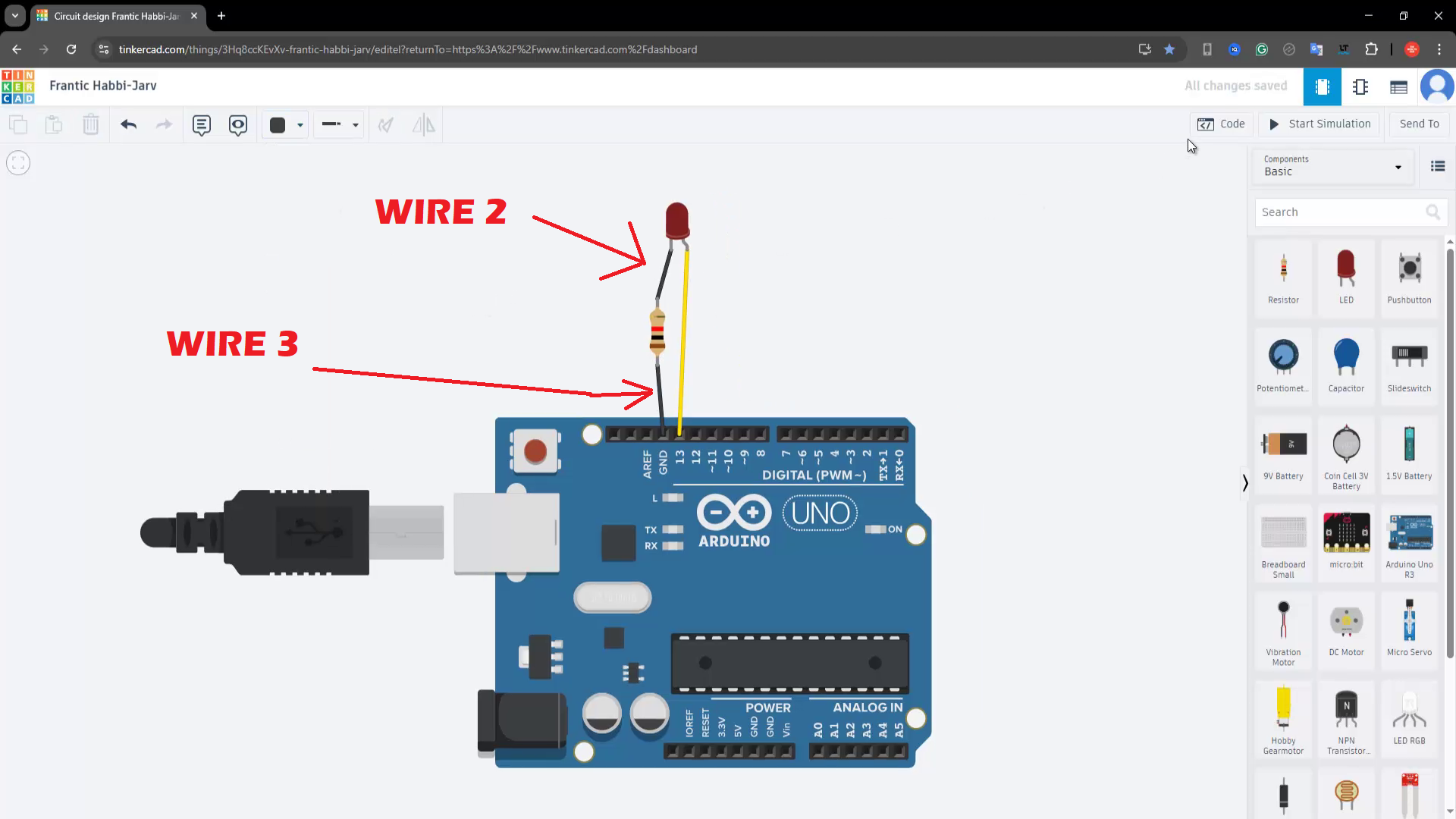

The next step is to create two wires, the first wire is between the LED Cathode and the resistor, the second wire will be between the resistor and the GND (Ground) Pin of the Arduino. Select the Black color for these two wires.
Step 6

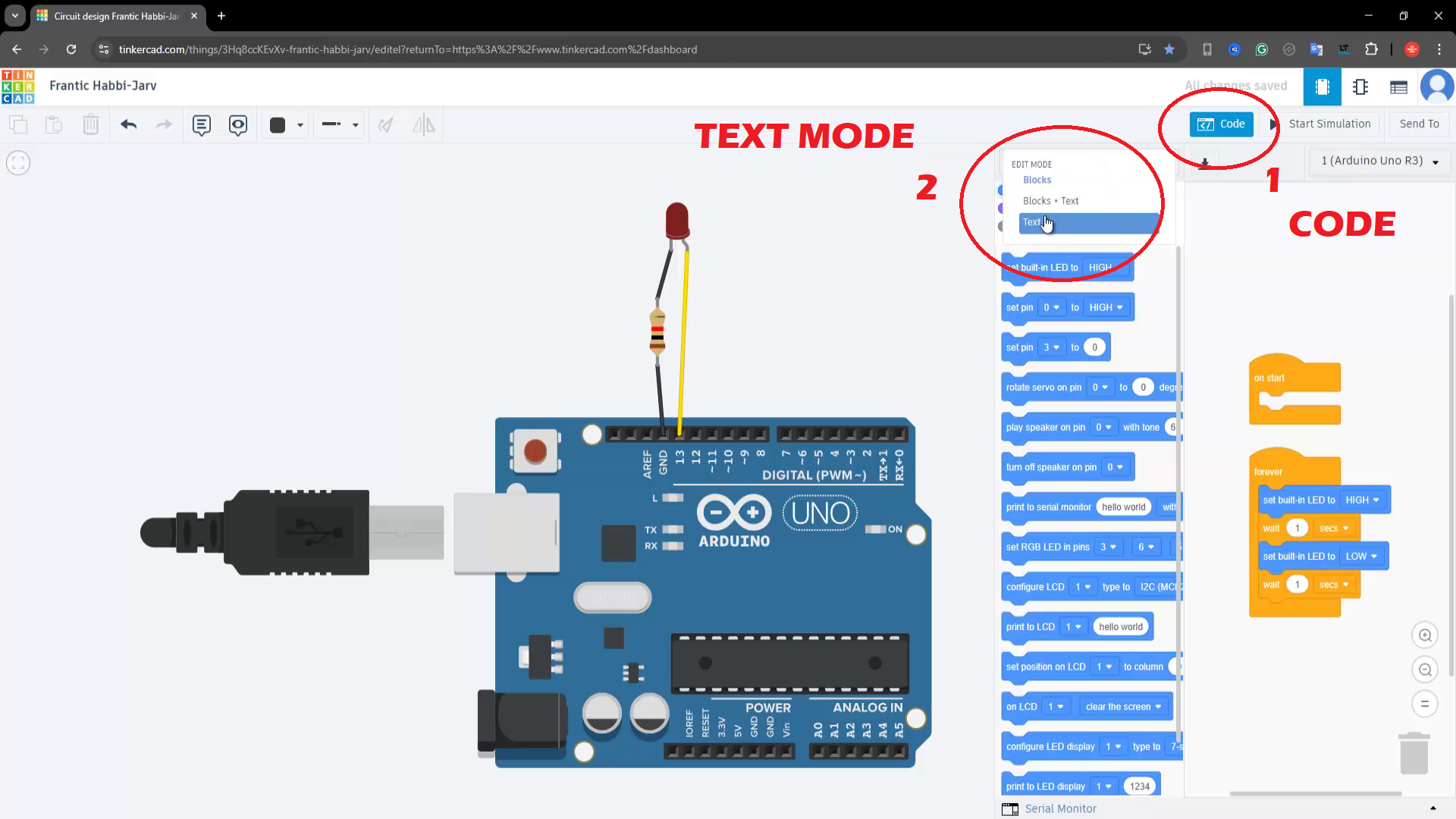

Go to Code, then change the mode from blocks to text.

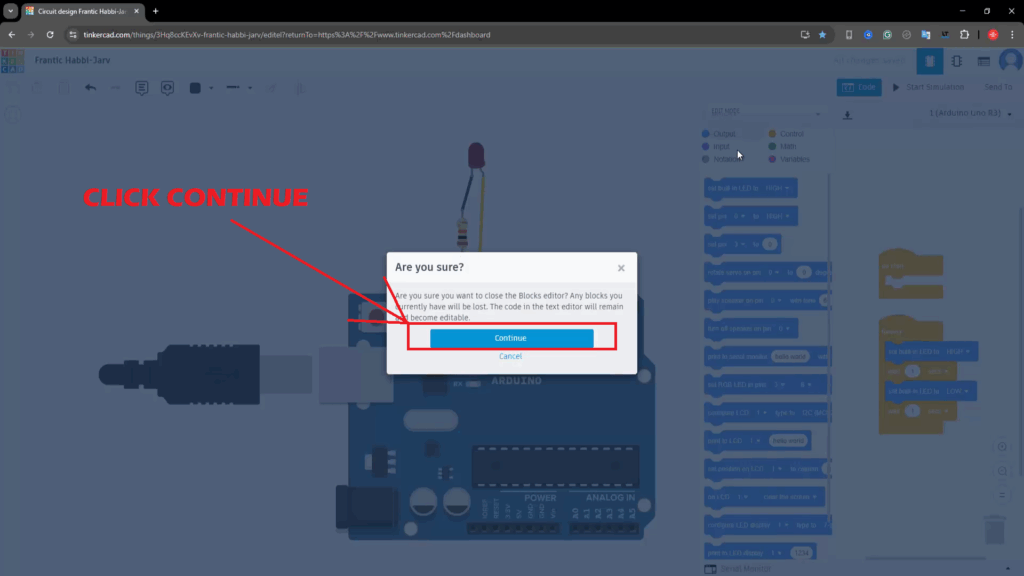

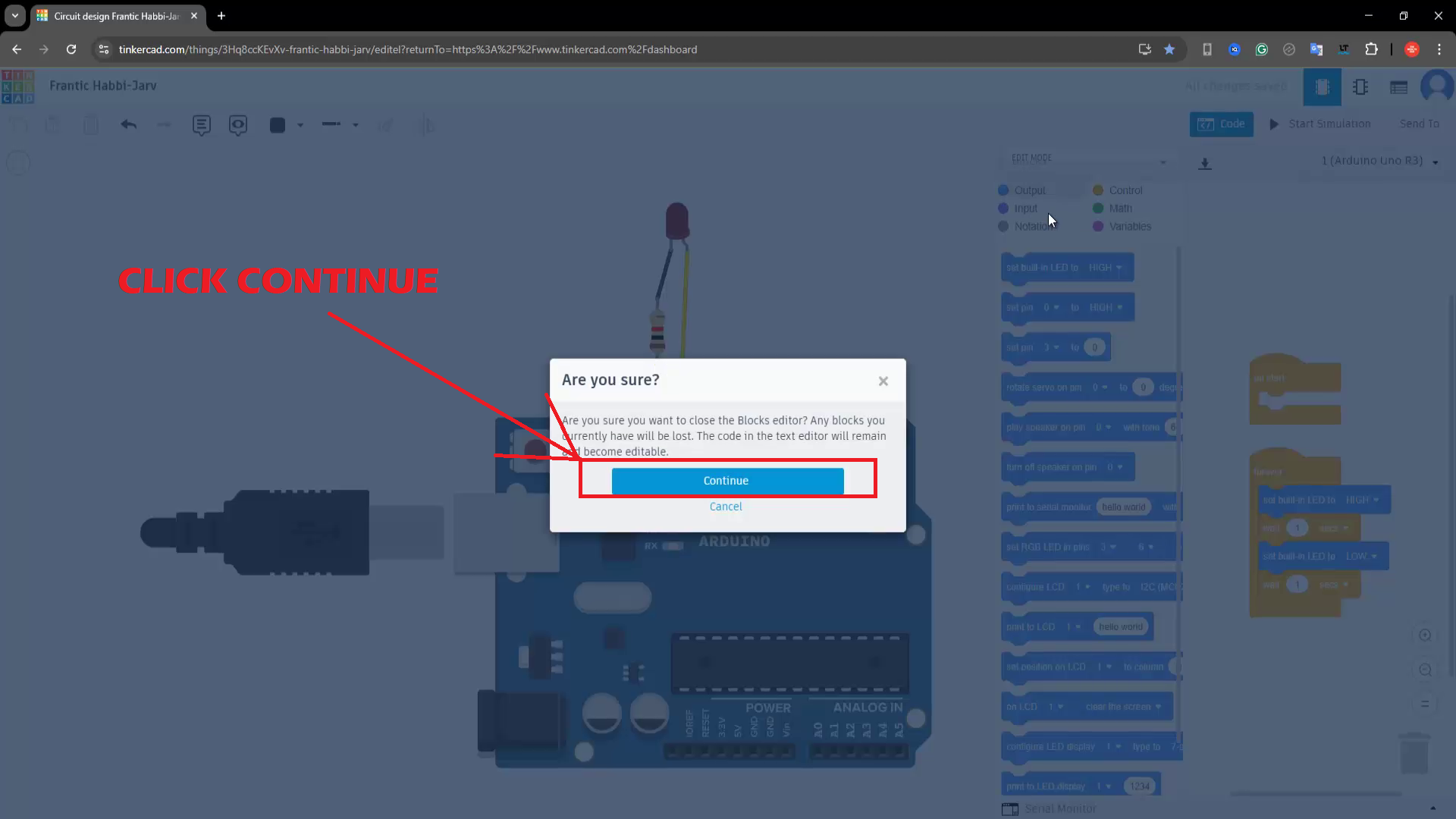

If you get this message, just click on continue.
Step 7

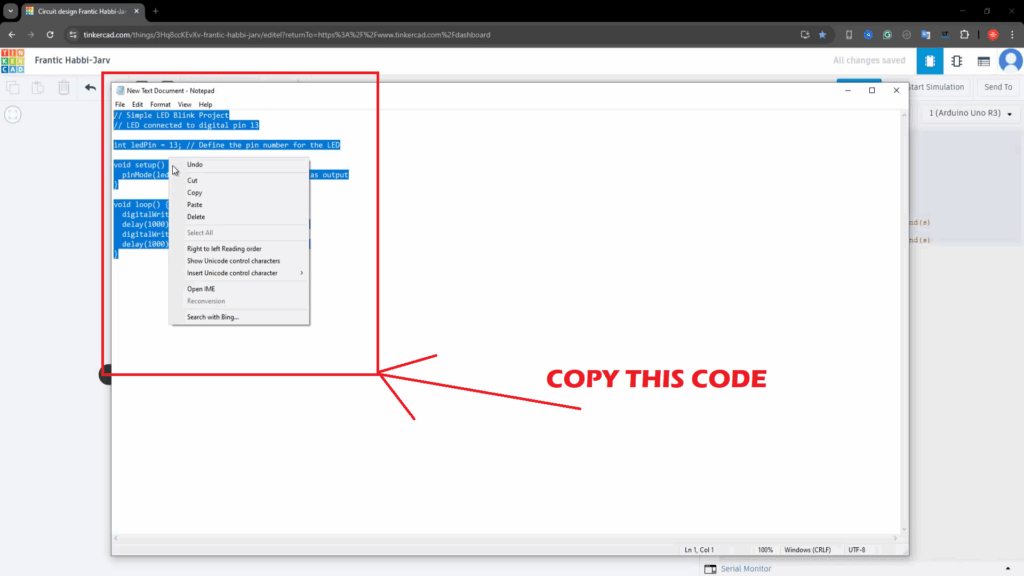

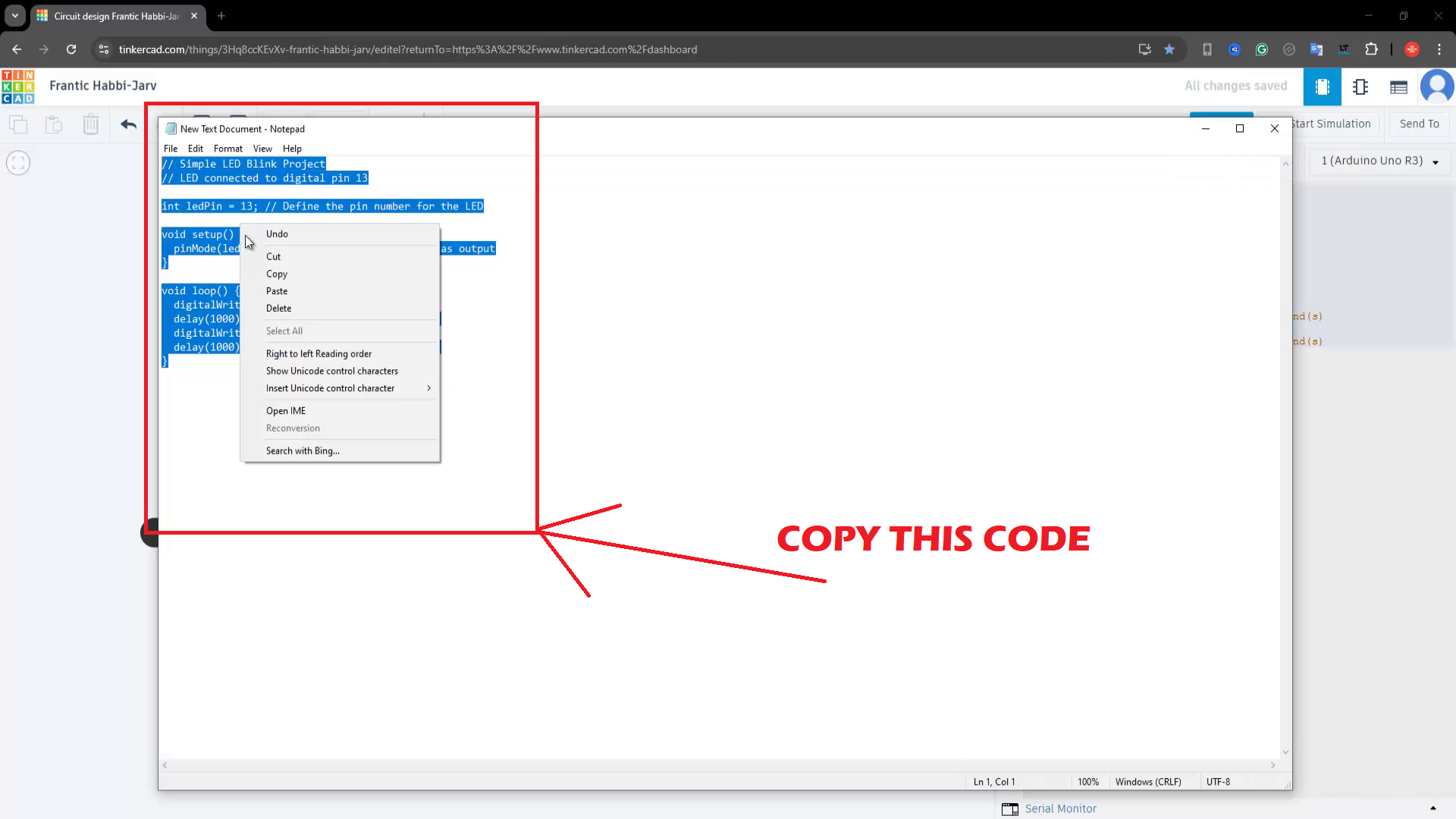

Copy this Code.

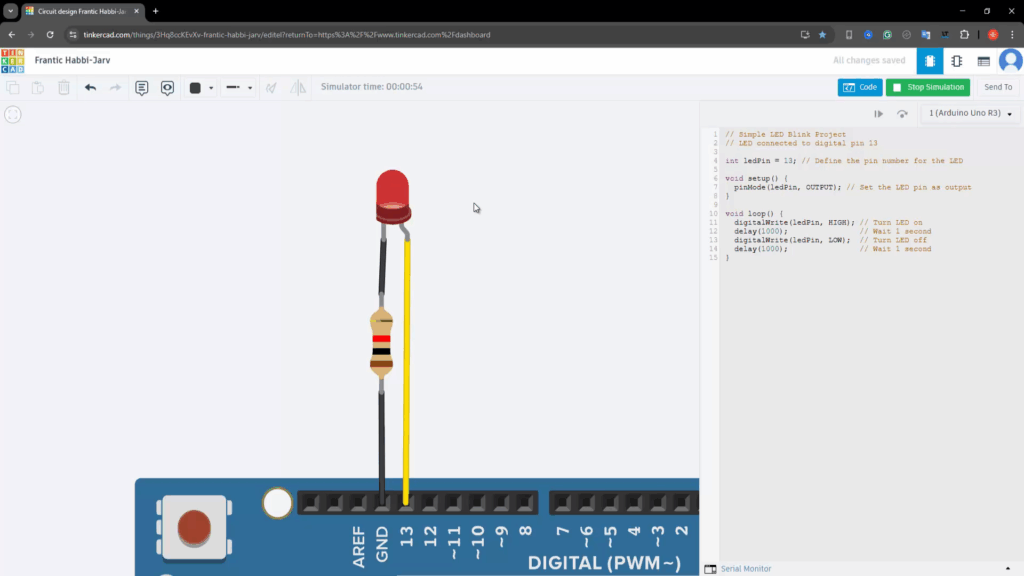

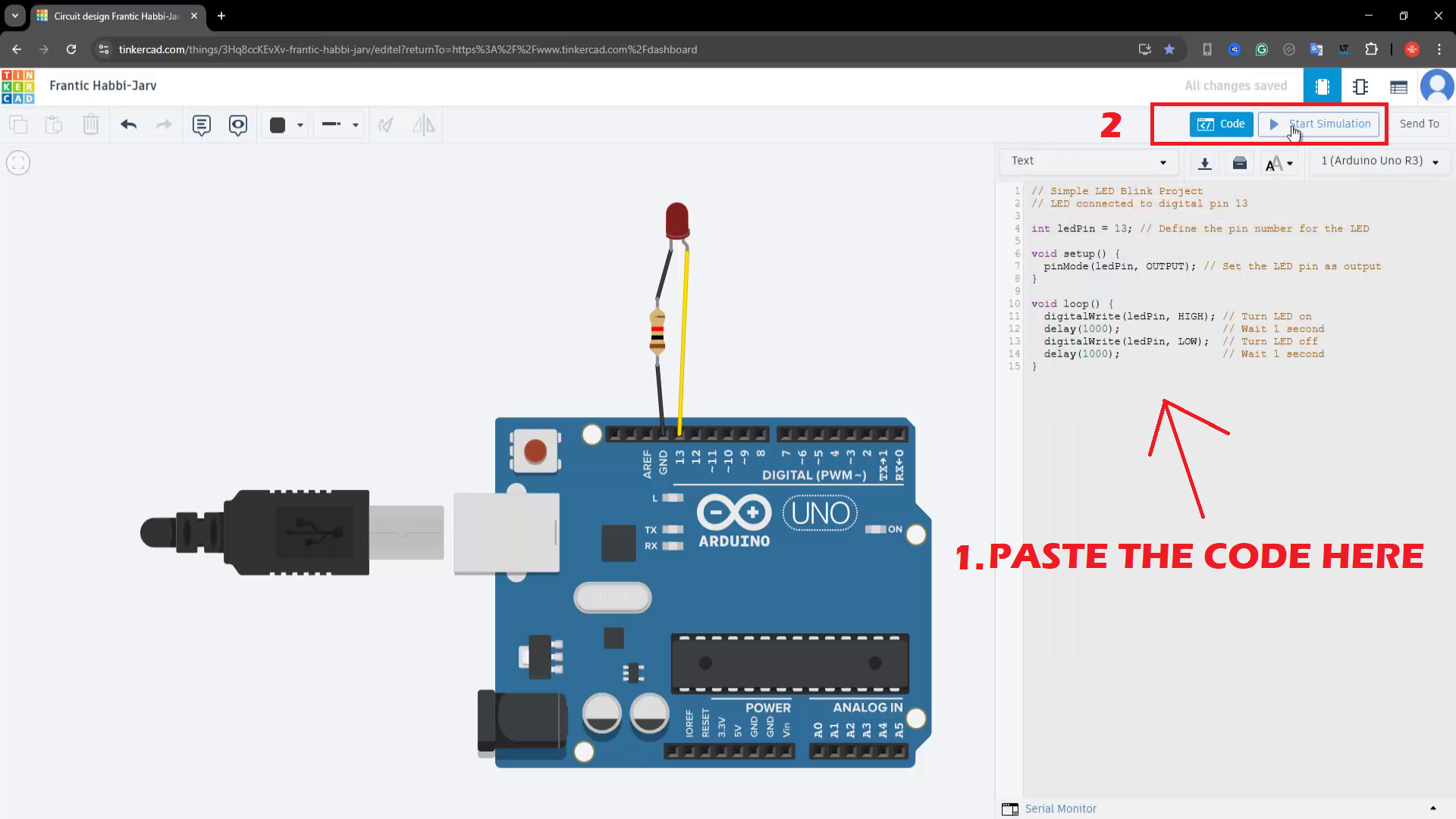

Paste the Code in the Text Field then Click on Start Simulation Button.

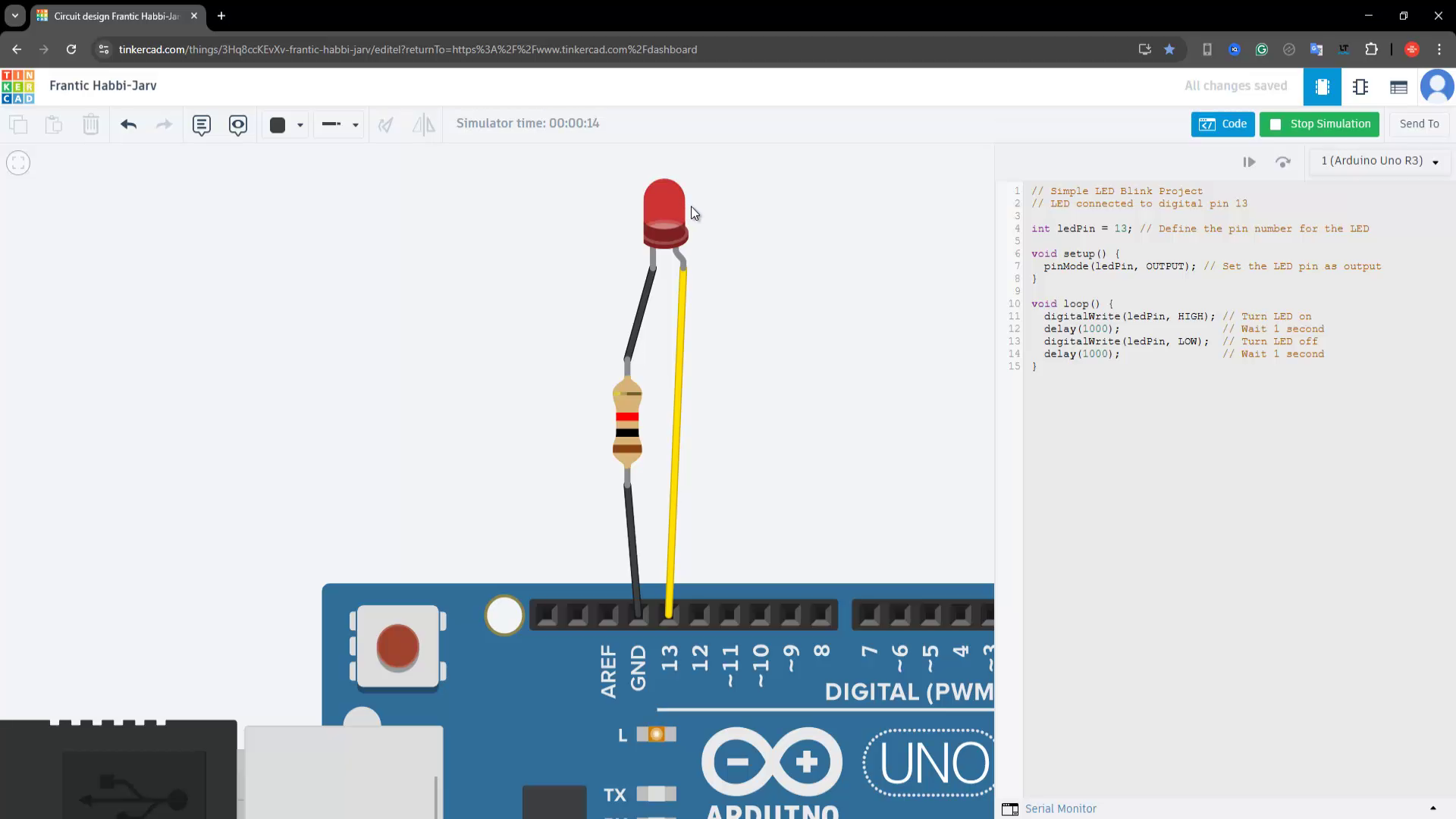

The LED Will Blink for one second according to the Editable Code.
