Hey everyone. In this video guys, I'm
0:01
going to be showing you how you can
0:03

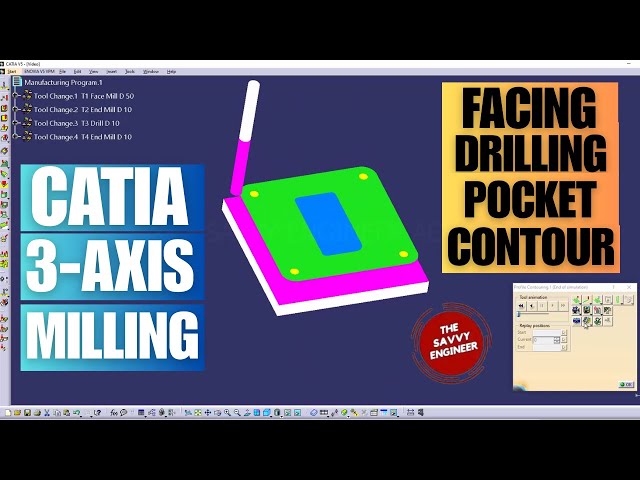

create a threeaxis milling program in
0:06
Katillaa. Okay, let's get started. In
0:08
this video guys, I'm going to be showing
0:09
you how you can create the machining
0:12
program of this piece. Okay, so the
0:15
yellow piece is the stock and the white
0:17
piece is the part to get at the end of
0:20
the machining program. Okay. So in this
0:23
case, we're going to be doing a drilling
0:26
here, pocketing, facing, and contouring
0:29
these four operations. Okay. So I repeat
0:32
again, drilling, contouring, pocketing,
0:35
and facing. So the first one will be
0:37
facing, the second one will be
0:40
pocketing, the third one will be
0:42
drilling, and the fourth one will be
0:44
contour. Okay? To create a contour here.
0:47
So let's get started. So the first thing
0:49
that you need to do here to get this
0:51
assembly. So you can download this
0:54
assembly using the link mentioned in
0:56
description box below and also at the
0:58
end of the video you can download this
1:01
machining program using also the link
1:03
mentioned in description box below.
1:05
Okay. Now the first thing that you need
1:07
to do here after opening this assembly
1:10
in your katillaa is to go to start then
1:13
you go to machining then advanced
1:17
So I often use this advanced machining
1:21
workbench because I find here all the
1:24
icons that I need, all the commands that
1:26
I need for the milling operations,
1:29
right? So the first thing that you need
1:30
to do here is to click on this plus
1:32
signs. Okay, like this. Okay, next you
1:36
double click on the part operation. Then
1:38
you go to this first icon called
1:40
machine. Okay, great. Next you go to the
1:43
numerical control and for the pro
1:45
processor you change it to fenug let's
1:48
say fenuk 11m okay and for the NC data
1:52
type change it from apt to ISO then you
1:55
click on okay great nice then you go to
1:58
the second command called reference
2:01
mashing axis system okay then you click
2:04
on this point then you choose this point
2:08
okay so as you can see here we have x y
2:10
and z okay then You click on okay. Now
2:13
you go to the collisions checking tab.
2:16
You check this option activate
2:18
collisions checking. Then also on
2:21
geometries you click on on design part.
2:23
Then on fixtures also. Okay. So you make
2:26
sure that all these options are enabled.
2:29
Then you come back to geometry. Now in
2:31
this case we're going to be clicking or
2:33
selecting the part and the stock. So you
2:37
click here to select the part. So we go
2:40
to the piece the part body of the piece.
2:42
Double click as you can see here the
2:44
part or the piece is selected and here
2:47
for the stock I click here. Then I go to
2:51
the part body of the stock. Then as you
2:55
can see here both of these are selected.
2:58
We have a piece here and a stock. Now
3:00
you click on okay. Next you go to the
3:02
plus sign. You make a simple click here.
3:05
Then the first operation will be facing.
3:07
Right? So simple click here then you go
3:09
to insert mashing operations prismatic
3:13
mashing operations then you go to facing
3:16
right. Okay. Now you click here to
3:20
select the top face of the stock. Then
3:22
you click here to select the top face of
3:29
now you remove this contour. This is the
3:32
contour of the piece. And we need to
3:34
select the contour of the stock. Okay.
3:37
like this. 1 2 3 and four. Then you
3:41
click on okay like this. Right. Great.
3:45
You go to the first tab. You can change
3:47
it to from inward ilico to let's say one
3:51
way. Okay. Here everything is okay. Now
3:55
the tool that you need to do the facing
3:58
operation will be the first one like
4:00
this. We're going to be changing the
4:02
corner radius to zero like this. Okay.
4:06
Now, we're gonna jump to this tab and
4:09
change the feed rate to 3,000 like this.
4:14
I'm going to copy this value. And I'm
4:17
going to paste it here and here for the
4:22
retract and also for the finishing.
4:24
Okay. Now, we're going to jump to the
4:26
last tab, which is the macros. Right.
4:29
So, here I'm going to activate the
4:31
approach macro and the retract.
4:34
Okay. So here I'm going to add let's say
4:40
approach macro and for the retract I'm
4:43
going to add let's say 30 mm. Right? So
4:47
if you want to add like let's say two
4:50
route levels and one finish level you
4:53
can do it. So we come back here to the
4:55
first tab then you go to axial number of
4:58
levels will be like let's say two
5:00
levels. Okay. And I'm going to change
5:03
the mode to maximum depth of cuts. I'm
5:06
going to add here two. And like we have
5:09
two cuts of 2 mm each. So we have four.
5:13
And we have 1 mm left because the
5:15
distance between the top of the stock
5:16
and the top of the piece is 5 mm. So I'm
5:19
going to go to finishing
5:21
and I'm going to add here one. Right. So
5:24
if I click replay. Okay. So now I'm
5:26
going to go and click on the tool path
5:29
replay. Okay. But before we do that, we
5:32
need to add an approach and retract for
5:35
the levels for the two route levels and
5:38
for the finish level also. Right? And to
5:40
do this, I'm going to go and add like
5:44
return between level retract
5:52
return between level approach like this.
5:57
Okay. And for the finish also return
6:00
finish pass like this and return
6:06
finish pass approach like this. Okay. So
6:10
I'm going to go and click on this icon
6:15
and I'm going to go and check if the
6:19
collisions. Okay. So this option is
6:22
enabled. Stop collisions. Okay. So if we
6:25
detect a collision the the simulation
6:28
will be stopped. Okay. So okay then we
6:33
we good. Okay. So if you click on
6:40
So as you can see here everything is
6:42
okay. So the first mashing operation is
6:45
okay. Now we're going to pass to the
6:47
second machining operation which is
6:50
pocketing. Okay. So now to create the
6:53
pocket like to do the mashioning of this
6:56
pocket the first thing that you need to
6:58
do here is do one simple click here then
7:00
you go to insert then mashioning
7:02
operations then you go to prismatic
7:05
mashioning operations then you click on
7:07
pocketing okay so now in this case I'm
7:10
going to change the pocket type from
7:12
open pocket to clos it pocket you just
7:15
need to click on open pocket like this
7:17
okay so you click here on the top of the
7:20
pocket to select the top of the piece.
7:25
We need to hide the stock. We're going
7:27
to select the top of the piece. And then
7:29
you click the bottom of the pocket. And
7:31
you click the bottom of the pocket like
7:33
this. Okay. So now we're going to go to
7:36
the first tab. You can change the tool
7:39
path style from outward ilico to inward
7:42
ilico. And also you can select another
7:45
tool path style. Okay. So I'm going to
7:47
keep the outward ilico like this. Then
7:50
I'm going to go to the tool. Then I'm
7:52
going to select the sig option. Then I'm
7:55
going to change the diameter of the body
7:59
to 6 mm like this. Then I'm going to
8:04
change it here 6 mm. You know why?
8:06
Because the radius of this corner is 3
8:08
mm. Okay. Then I'm going to change the
8:11
corner radius to zero. Okay. Now I'm
8:13
going to go to the macro. I'm going to
8:16
activate the approach and retract. I'm
8:18
going to add here a app upro macro of 30
8:22
mm. And I'm going to go and add another
8:25
axial of 30 mm like this. Okay. Now we
8:30
come back here to the first tab. Then we
8:33
go for the actual and we're going to
8:35
change the mode to number of levels. And
8:38
I'm going to change the number of levels
8:40
to let's say two. Okay. Each level we're
8:44
going to cut 5 mm. Okay. Then you click
8:46
on tool path replay. Then you click here
8:49
on the full video. Okay. So this is the
8:54
and then this is the pocketing. Okay. So
8:57
if you click on analyze then you click
9:00
on apply. As you can see here everything
9:03
is okay. It's green. Okay. We did the
9:06
pocketing. Okay. Then you click on
9:09
cancel. Then you click on okay. And
9:13
we're going to see it also here. We're
9:16
going to repeat it. This is the first
9:18
level. And this is the second level. So
9:20
everything is okay, guys. Okay. So now
9:22
we're going to jump to the third
9:23
operation. And to do this, you click
9:25
here. You do one simple click on the
9:27
pocketing. Then you go to insert mashing
9:30
operations. Axial mashing operations.
9:32
Then you go to drilling. Okay. Now you
9:34
click on this line, the top face of the
9:38
stock like this. Then you double click
9:40
here. Then you click on these two lines.
9:45
You choose or you select these holes one
9:48
by one like this. The third one and the
9:52
fourth one. Double click here. Then
9:54
we're going to change the depth from 20
9:57
to let's say 30. Okay. Or 25 as you
10:01
like. Okay. For the macros, I'm going to
10:03
go and activate the approach and
10:05
activate the retract. For the approach,
10:07
I'm going to add here 20 mm.
10:11
And for the retract, I'm going to go and
10:16
cm on 20 mm. Okay. So now here in this
10:19
tab, I'm going to change the feed rate
10:22
from 300 to 30,000. I'm going to do the
10:27
same thing here. And the same value also
10:30
here. Okay. So now here for the third
10:34
tab I'm going to choose this tool and
10:37
I'm going to go first and measure the
10:41
diameter will be 6 mm. Okay. So the tool
10:45
here will be 6 mm and also here 6 mm.
10:50
Okay great. Now we click on the tool
10:55
path replay then the full video. Okay.
11:02
pocketing and the drilling. Okay. So the
11:06
drilling I'm going to do the analyze
11:10
Then as you can see here everything is
11:12
good. Great. Now we're going to pass to
11:17
the fourth mashioning operation which is
11:20
the contour. Okay. So we're going to do
11:23
the contour of this piece. Okay. Okay.
11:25
So now we're going to jump to the last
11:27
mashioning operation in this tutorial.
11:29
We're going to do simple click here.
11:31
Then we go to insert mashioning
11:33
operations, prismatic mashing
11:35
operations. Then I'm going to go to
11:37
profile contouring. Okay,
11:41
great. Now in this case, if you click
11:43
here, we need to select the top face of
11:47
the piece. If you click here, we need to
11:49
select the bottom face of the piece.
11:52
Okay, great. Now I'm going to add an
11:56
offset on the bottom of let's say 3 mm
12:01
for the fixtures or let's say 5 mm.
12:04
Okay, we need to fix like the piece
12:06
here. We need to use like minimum let's
12:08
say 3 mm. Okay, depending on the
12:11
situation, depending on the machine,
12:12
depending on many parameters, the
12:14
material etc. So I'm going to add an
12:17
offset on bottom like 5 mm. Okay, great.
12:20
Now here I'm going to change the tool
12:23
path style from zigzag to one way. And
12:27
here everything is okay. I'm going to
12:29
come back to the first one. I'm going to
12:30
go to step over and for the number of
12:34
levels for actual strategy I'm going to
12:37
use like let's say three number of
12:40
levels. And for each level we going to
12:43
cut 5 mm of material. Okay. I'm going to
12:46
come back here. I'm going to use the
12:48
second tool. and the tool that we need
12:50
to use like 8 mm tool or 10 mm. Okay, in
12:54
this case I'm going to use 8 mm tool.
12:56
I'm going to change the corner radius to
12:58
zero. Then I'm going to go to the last
13:01
tab. I'm going to activate the macro for
13:04
the approach. I'm going to activate here
13:07
like 20 mm and for the retract also 20
13:12
mm. Then I'm going to click here on the
13:15
tool path replay. Then I'm going to
13:18
click on the full video. Okay. Then
13:22
click on play the facing, the pocketing,
13:26
the drilling, and this is the contour.
13:28
Okay. So we need to remove this parts.
13:32
Okay. This parts of the piece. We need
13:34
to remove them. And how to do this? We
13:36
click okay. We come back here to the
13:40
first tab. We go to step over. For the
13:42
radial strategy, we need to add another
13:46
and the distance between the path let's
13:49
say 7 mm then replay
13:54
then we see the full video again if we
13:58
did something right for the piece. Okay.
14:01
So as you can see here everything is
14:04
good right now. Thank you guys for
14:06
watching and do not forget to subscribe
14:09
to catch you next time on the Savvi
14:11
Engineer Academy YouTube channel. By the
14:14
way, you can I repeat again, you can
14:17
download the assembly, disassembly and
14:20
also the machining program using the
14:23
link mentioned in description box below.
14:25
Thanks for watching.
